Power

This page details how the mains power has been installed at the space.

Socket power outages

All point upstairs (F6) have been labeled with information showing details of how they are feed. This is to allow a member to more easily identify which break they may need to reset in the case of power outage at a given socket.
The formats is `[Distribution Board]-[Breaker Number]-[Phase]`

If resetting a breaker does not resolve the power issue please report immediately to Team: Infrastructure via Discord or email.

F6

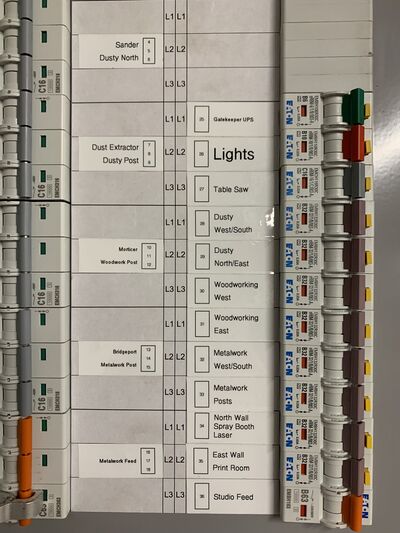

DB1 Workshop

This is the new grid feed

NZMB1-A100 In=100A Eaton 100A Triple Pole 25kA MCCB

CABLESIZE	MCBSIZE	CIRCUIT	No.	PHASE		PHASE	No.	CIRCUIT	MCBSIZE	CABLESIZE
			1	BR1		BR7	19
			2	BK1		BK7	20
			3	GY1		GY7	21
2.5mm2	C16A MCB	Sander Dusty North	4	BR2		BR8	22
			5	BK2		BK8	23
			6	GY2		GY8	24
2.5mm2	C16A MCB	Dust Extractor Dusty Post	7	BR3		BR9	25	Gatekeeper UPS	B6A RCBO	1.5mm2
			8	BK3		BK9	26	Lights	B10A RCBO	4mm2
			9	GY3		GY9	27	Table Saw	B16A RCBO	4mm2
2.5mm2	C16A MCB	Morticer Woodworking Post	10	BR4		BR10	28	Dusty West/South	B32A RCBO	4mm2
			11	BK4		BK10	29	Dusty North/East	B32A RCBO	4mm2
			12	GY4		GY10	30	Woodworking West	B32A RCBO	4mm2
2.5mm2	C16A MCB	Bridgeport Metalwork Post	13	BR5		BR11	31	Woodworking East	B32A RCBO	4mm2
			14	BK5		BK11	32	Metalwork West\South	B32A RCBO	4mm2
			15	GY5		GY11	33	Metalwork Posts	B32A RCBO	4mm2
16mm2	B63A MCB	Metalworking Feed (DB3)	16	BR6		BR12	34	North Wall Spray Booth Laser	B32A RCBO	4mm2
			17	BK6		BK12	35	East Wall Print Room	B32A RCBO	4mm2
			18	GY6		GY12	36	Studio Feed (DB2)	B63A MCB	16mm2

DB2 Studio

This board is is on L3, feed from a B63A MCB on the New Workshop board (DB1-36-L3)

	10	9	8	7	6	5	4	3	2	1	MAIN SWITCH
CIRCUIT		Lights	UPS	Members Storage	Studio South Radial	Studio North Ring	Craft	Kitchen	Toilets	Hob	Incoming Feed from Workshop board (DB1-36-L3)
MCBSIZE		B310A RCBO	B16A RCBO	B32A RCBO	B32A RCBO	B32A RCBO	B32A RCBO	B32A RCBO	B32A RCBO	B32A RCBO	100AMP DOUBLE POLE
CABLESIZE		4mm2	4mm2	4mm2	4mm2	4mm2	4mm2	4mm2	4mm2	4mm2	16mm2

DB3 Metalworking

Feed from a B63A MCB on the New Workshop board (DB1-16/17/18-L1/L2/L3)

CABLESIZE	MCBSIZE	CIRCUIT	No.	PHASE		PHASE	No.	CIRCUIT	MCBSIZE	CABLESIZE
			1	BR1		BR9	25
2.5mm2	B32	ELECTRONICS SYSTEM E-STOP	2	BK1		BK9	26
	B20		3	GY1		GY9	27		B32
	C20		4	BR2		BR10	28		C40
			5	BK2		BK10	29		B20
			6	GY2		GY10	30		B32
	D?40		7	BR3		BR11	31		C20
			8	BK3		BK11	32
			9	GY3		GY11	33
	B20		10	BR4		BR12	34		C20
	B32		11	BK4		BK12	35
	B32		12	GY4		GY12	36
	C20		13	BR5		BR13	37		C20
			14	BK5		BK13	38
			15	GY5		GY13	39
	C20		16	BR6		BR14	40		C20
			17	BK6		BK14	41
			18	GY6		GY14	42
2.5mm2	C20	BIG BANDSAW	19	BR7		BR15	43	ARC WELDER	D32	6mm2
			20	BK7		BK15	44
			21	GY7		GY15	45
2.5mm2	C20	DONKEY SAW	22	BR8		BR16	46	TIG WELDER	D63	16mm2
			23	BK8		BK16	47
			24	GY8		GY16	48

G4 & G5

G4

NZMB1-A100 In=100A Eaton 100A Triple Pole 25kA MCCB

CABLESIZE	MCBSIZE	CIRCUIT	No.	PHASE		PHASE	No.	CIRCUIT	MCBSIZE	CABLESIZE
2.5mm2	B32 RCBO	TEAM STORAGE ROOM RING	1	BR1		BR7	19
6mm2	B32 MCB	TEAM STORAGE UPS	2	BK1		BK7	20
			3	GY1		GY7	21
			4	BR2		BR8	22
			5	BK2		BK8	23
			6	GY2		GY8	24
			7	BR3		BR9	25
			8	BK3		BK9	26
			9	GY3		GY9	27
			10	BR4		BR10	28
			11	BK4		BK10	29
			12	GY4		GY10	30
			13	BR5		BR11	31
			14	BK5		BK11	32
			15	GY5		GY11	33
			16	BR6		BR12	34
			17	BK6		BK12	35
			18	GY6		GY12	36

G5

New Grid

NZMB1-1-AF63 In=63A Eaton 63A Single Pole 25kA MCCB
This board is is on L1

	10	9	8	7	6	5	4	3	2	1	MAIN SWITCH
CIRCUIT										Sub Board	100AMP DOUBLE POLE
MCBSIZE										B50 MCB
CABLESIZE										6?mm2

Sub board

This board is is on L1

	RCD2/4	RCD2/3	RCD2/2	RCD2/1	RCD2	RCD1/3	RCD1/2	RCD1/1	RCD1	MAIN SWITCH
CIRCUIT	SPARE	AUTOMATED LIGHTS	SPARE	CNC SOCKETS	30mA trip	COMMUNAL LIGHTS EMG LIGHTS OVER DOOR	BLUE ROOM WATER HEATER	BLUE ROOM SOCKETS	30mA trip	Incoming Feed from New Grid Board
MCBSIZE	N/I	B6 MCB	B16 MCB	B32 MCB	80amp RCD	B6 MCB	B16 MCB	B32 MCB	80amp RCD	100AMP DOUBLE POLE
CABLESIZE	N/C	1.5mm2	N/C	2.5mm2		1.5mm2	2.5mm2	2.5mm2

KEY :
N/I - NOT INSTALLED
N/C - NOT CONNECTED

G6

Metalworking

This is on the old grid and is planned to be removed

CABLE SIZE	MCB	CIRCUIT	PHASE		PHASE	CIRCUIT	MCB	CABLE SIZE
	RCBO32 30mA TRIP	TEMP SOCKETS BELOW BOARD	BR1		BR7	MEMBERS STORAGE RING MAIN	RCBO32 30mA TRIP	2.5MM
			BK1		BK7	UPS MEMBERS STORAGE	RCBO32 30mA TRIP	6MM
			GY1		GY7	CLASSROOM RING MAIN	RCBO32 30mA TRIP	2.5MM
			BR2		BR8
			BK2		BK8
			GY2		GY8
			BR3		BR9
			BK3		BK9
			GY3		GY9
			BR4		BR10
			BK4		BK10
			GY4		GY10
			BR5		BR11
			BK5		BK11
			GY5		GY11
	C63		BR6		BR12
			BK6		BK12
			GY6		GY12

Corridor

This is on the new grid

NZMB1-A100 In=100A Eaton 100A Triple Pole 25kA MCCB

CABLESIZE	MCBSIZE	CIRCUIT	No.	PHASE		PHASE	No.	CIRCUIT	MCBSIZE	CABLESIZE
			1	BR1		BR7	19	MEMBERS STORAGE RING MAIN	B32 RCBO	2.5mm2
			2	BK1		BK7	20	UPS MEMBERS STORAGE	B32 RCBO	6mm2
			3	GY1		GY7	21	CLASSROOM RING MAIN	B32 RCBO	2.5mm2
			4	BR2		BR8	22	CLASSROOM LIGHT CONTROL BOX	B6 RCBO	2.5mm2
			5	BK2		BK8	23
			6	GY2		GY8	24
			7	BR3		BR9	25
			8	BK3		BK9	26
			9	GY3		GY9	27
			10	BR4		BR10	28
			11	BK4		BK10	29
			12	GY4		GY10	30
			13	BR5		BR11	31
			14	BK5		BK11	32
			15	GY5		GY11	33
			16	BR6		BR12	34
			17	BK6		BK12	35
			18	GY6		GY12	36

Ground Floor Isolators

First Floor Isolators

Resources

• Electricity usage stats (HMS)
